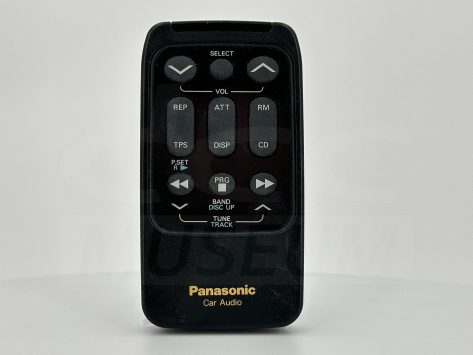

CQ-DC1

Panasonic Car Stereo.

Donated by Kurtis Bahr.

General

  • Power Supply 12 V DC (11 V – 16 V) Test Voltage 14.4 V, Negative ground
  • Maximum Power Output 1.4V RMS
  • Output Impedance 600 Ohm
  • Tone Action Bass : ‡ 12 dB at 100 Hz Treble: ‡ 12 dB at 10 kHz
  • Loudness Control + 6 dB at 100Hz, 10 kHz
  • Current Consumption Less than 1.2 A (at DCC-tape mode)
  • Dimensions Main Unit: 7″X 1-15/16″ X 6-5/16″ (178X50X160 mm)
  • Weight Main Unit: 3 Ibs. 12 oz. (1.7 kg)



AM Radio

  • Frequency Range 530 – 1,710 kHz
  • Useable Sensitivity 25 dB/UV (25 |V, S/N 20 dB)



FM Stereo Radio

  • Frequency Range 87.9 – 107.9 MHz
  • Usable Sensitivity 13.2 dBf. (1.25 (V, 75 )
  • 50 dB Quieting Sensitivity 15.2 dBt. (1.6 (V, 75 2)
  • Frequency Response 30 – 15,000 Hz ‡3 dB
  • Capture Radio 1.5 dB
  • Alternate Channel Selectivity 75 dB
  • Stereo Separation 42 dB (at 1 kHz)
  • Image Response Ration 65 dB
  • IF Response Ration 100 dB
  • Signal To Noise Ratio 70 dB



DCC Tape Player

  • Reproduction System Stationary-head system DCC (2-program stereo)
  • Sampling Frequency 48 kHz, 44.1 kHz, 32 kHz (automatic selection)
  • Number of Quantization Bit 16 bit linear
  • Data Processing System PASC
  • Frequency Response
    20 – 22,000 Hz #1 dB (at 48 kHz)
    20 – 20,000 Hz ‡1 dB (at 44.1 kHz)
    20 – 14,500 Hz ‡1 dB (at 32 kHz)
  • Wow and Flutter Below measurable limits
  • Signal To Noise Ration 90 dB
  • Total Harmonic Distortion 0.01 %.



Analog Tape Player

  • Reproduction System 4-track, 2-program stereo
  • Frequency Response
    30 – 17,000 Hz ‡3 dB (normal)
    30 – 20,000 Hz ‡3 dB (metal)
  • Wow and Flutter 0.08 % (WRMS)
  • Signal To Noise Ration 52 dB (Dolby NR on; 62 dB)



Deck Mechanism

  • Tape Speed 1-7/8″/sec (4.76 cm/sec)
  • FF/REW Time
    Less than 105 sec (C-60)



Notes:

  • Dolby Noise Reduction manufactured under license from Dolby Laboratories Licensing Corporation.
  • “DOLBY” and the double-D symbol are trademarks of Dolby Laboratories Licensing
